The B&P pipe heat exchangers are particularly suited to the thermal treatment of products with a high viscosity range as well as products containing solids or fibrous products (fruit pulp).
| Efficiency | 3 to 60 t/h |
| Heating system | steam – water (Δ t) max. temperature increase Δ 25-85ºC |
| Circulating pump | 3-7 kW |
| Steam pressure | up to 4 bar |
| Air pressure | 6-8 bar |
| Steam consumption | approx. 2 t/h (apple mash: 30t/h, Δ 20ºC, at 2 bar) |
| Dimensions (30 t/h system) | approx. 8x0.9x2.6 m |
|
Materials |
stainless steel AISI 304/optional AISI 316 L |
Insulation: mineral wool, Armaflex, insulation plates (full insulation)
They are used in heating or cooling systems in processing industry.

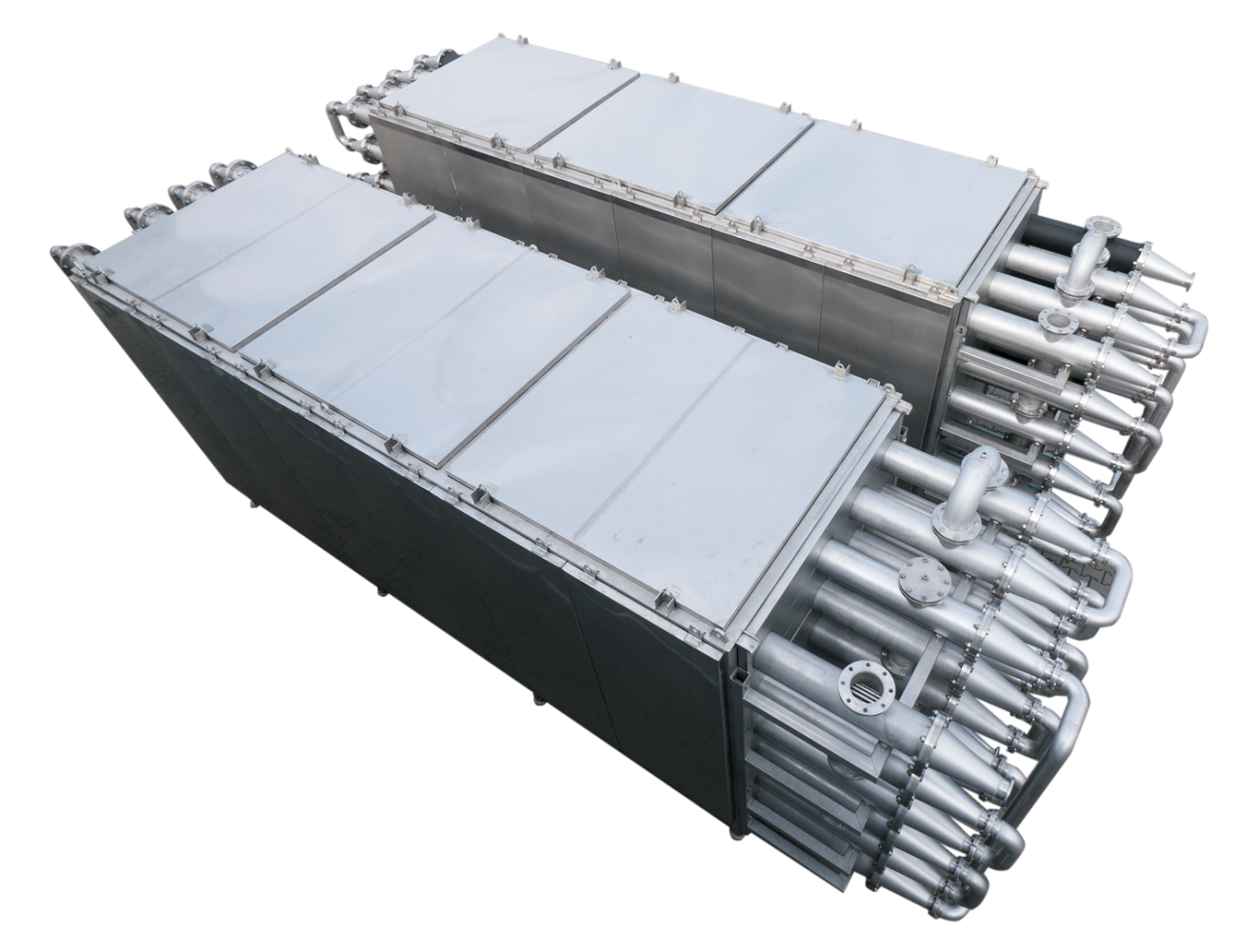

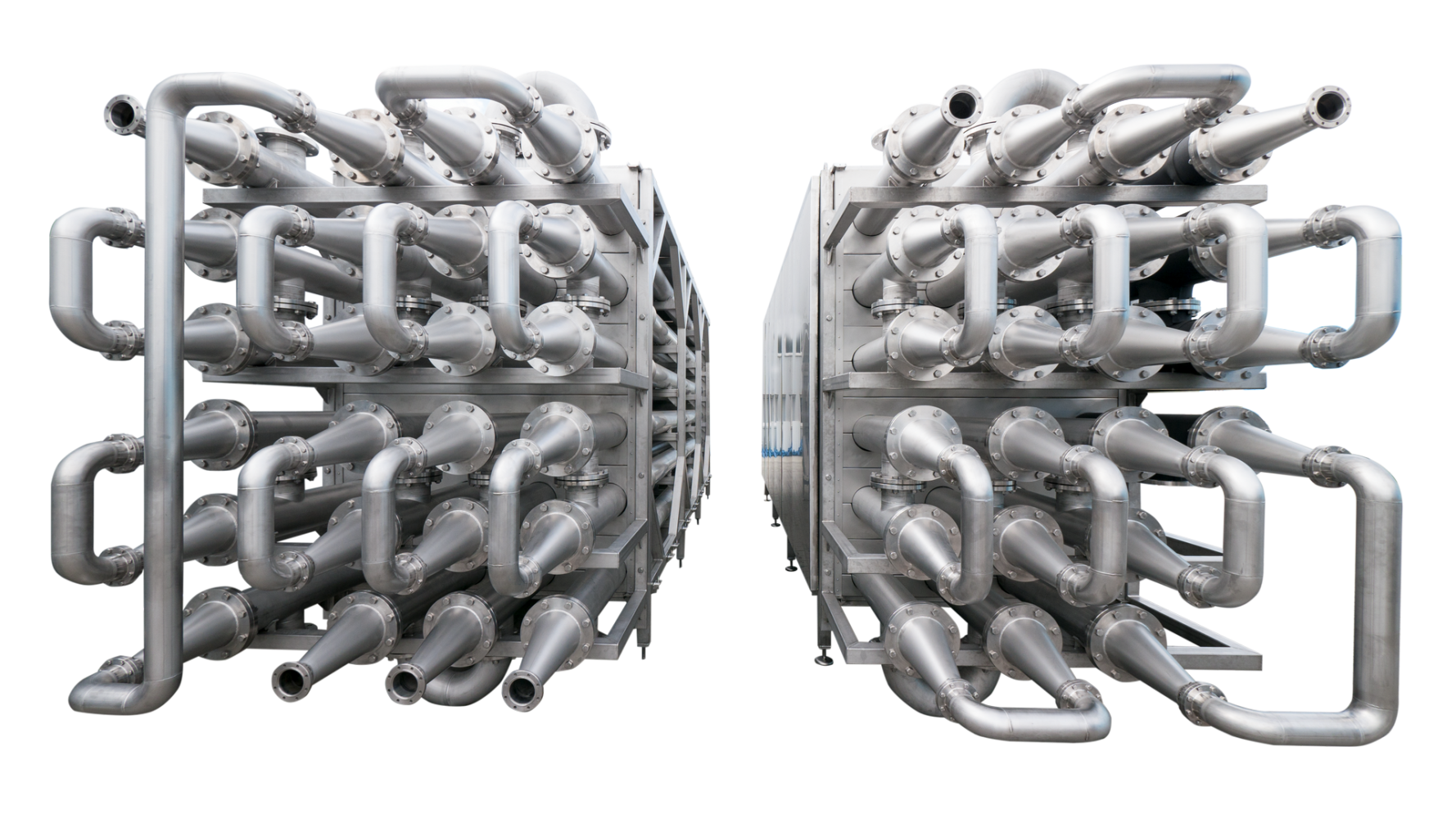

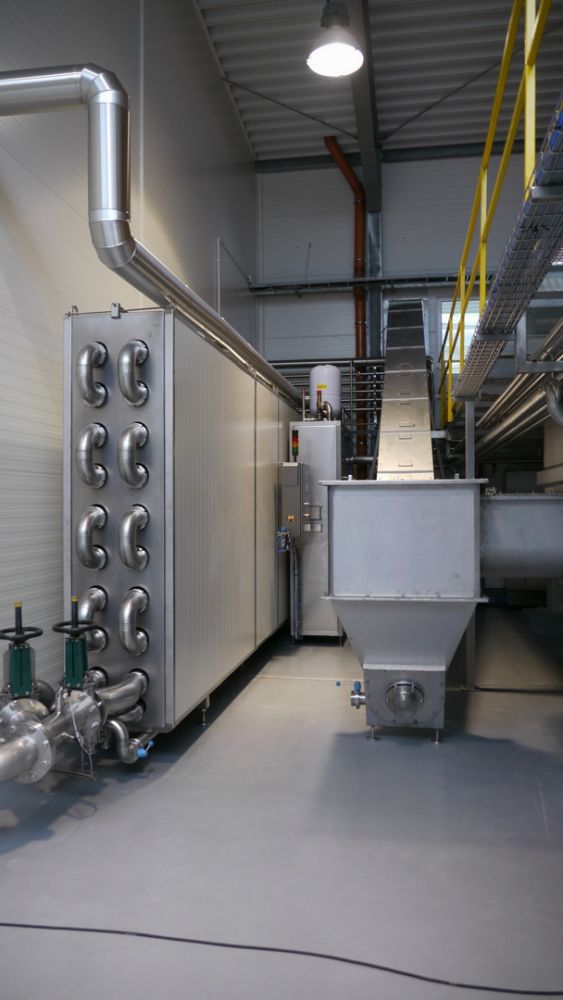

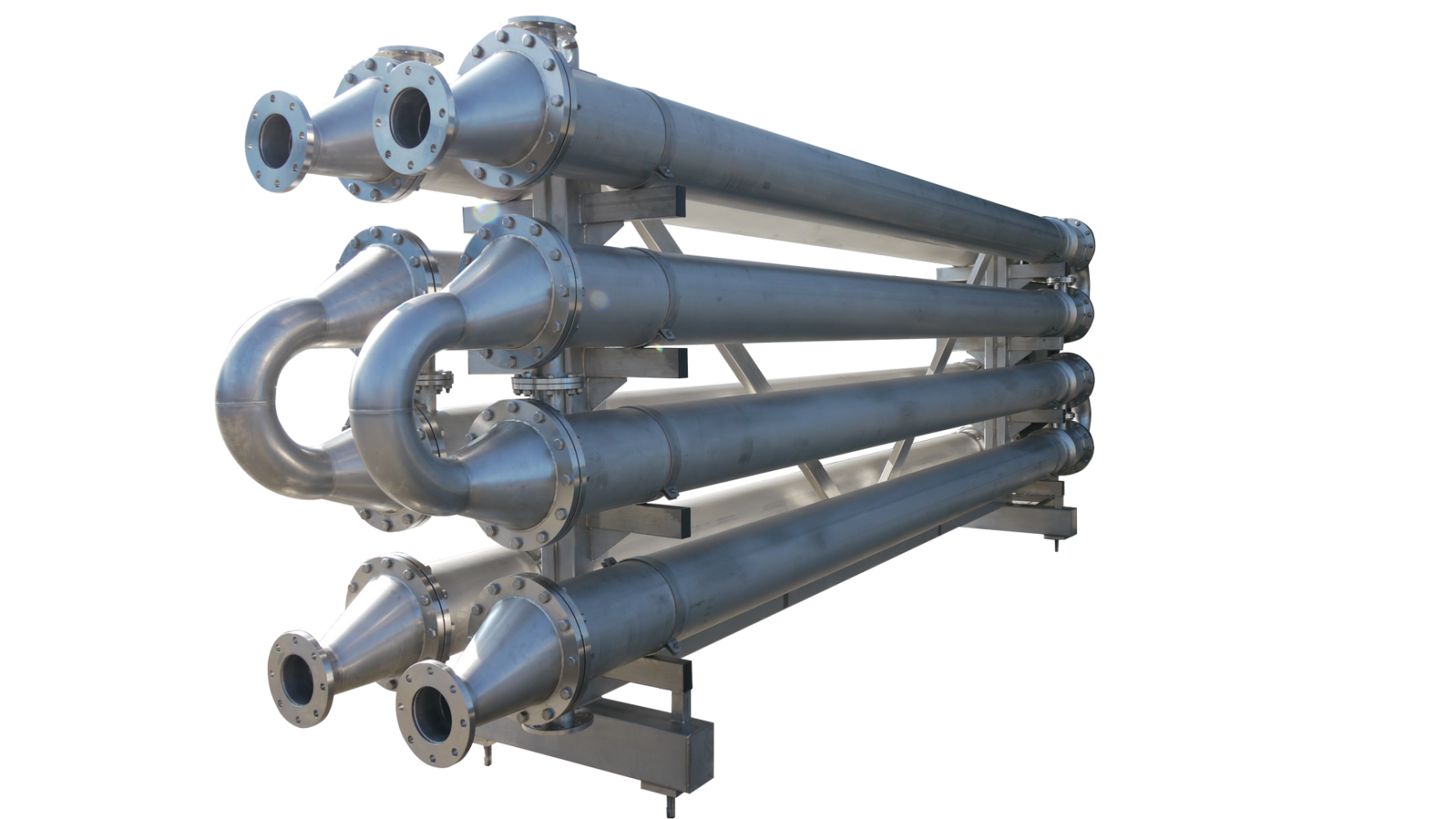

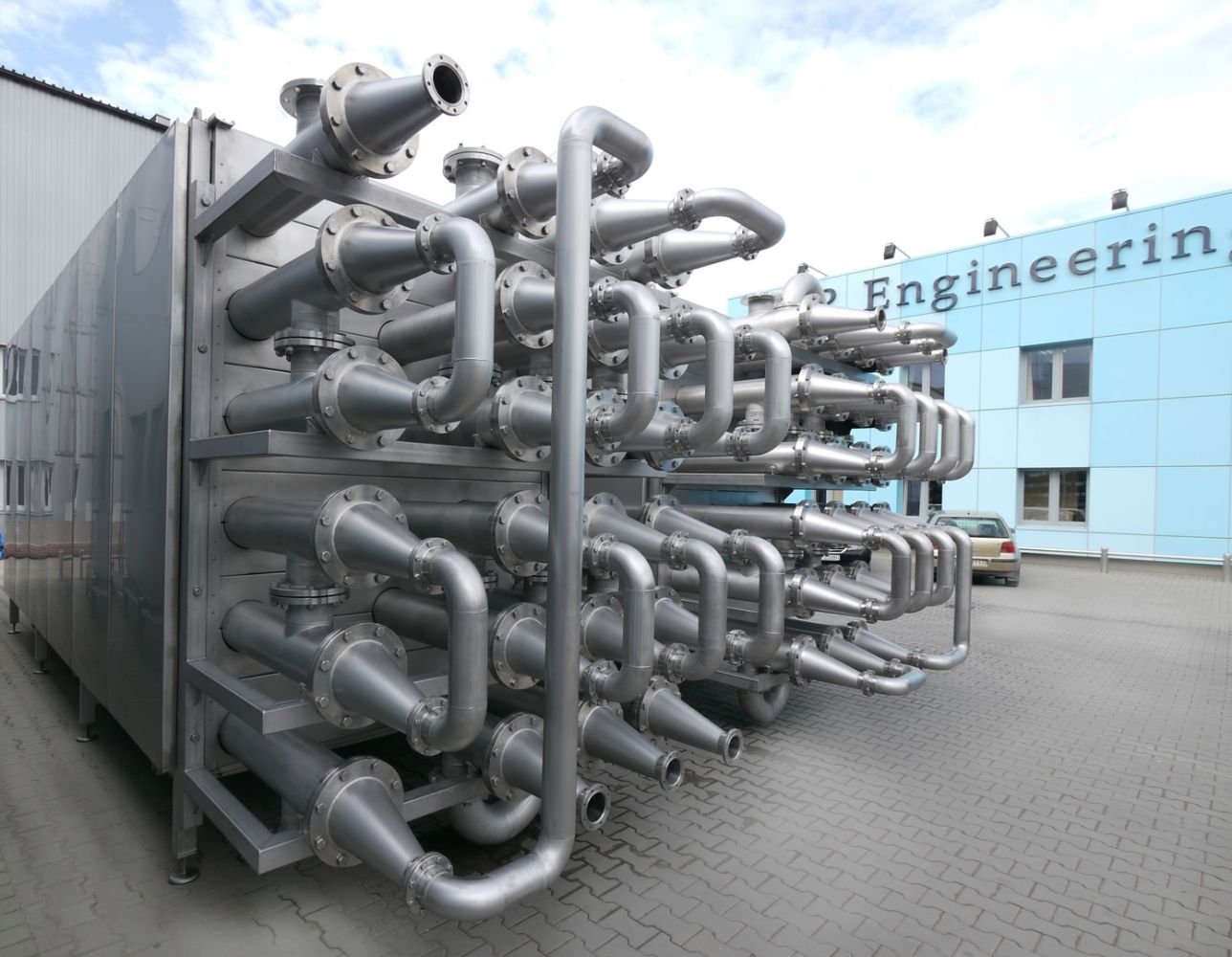

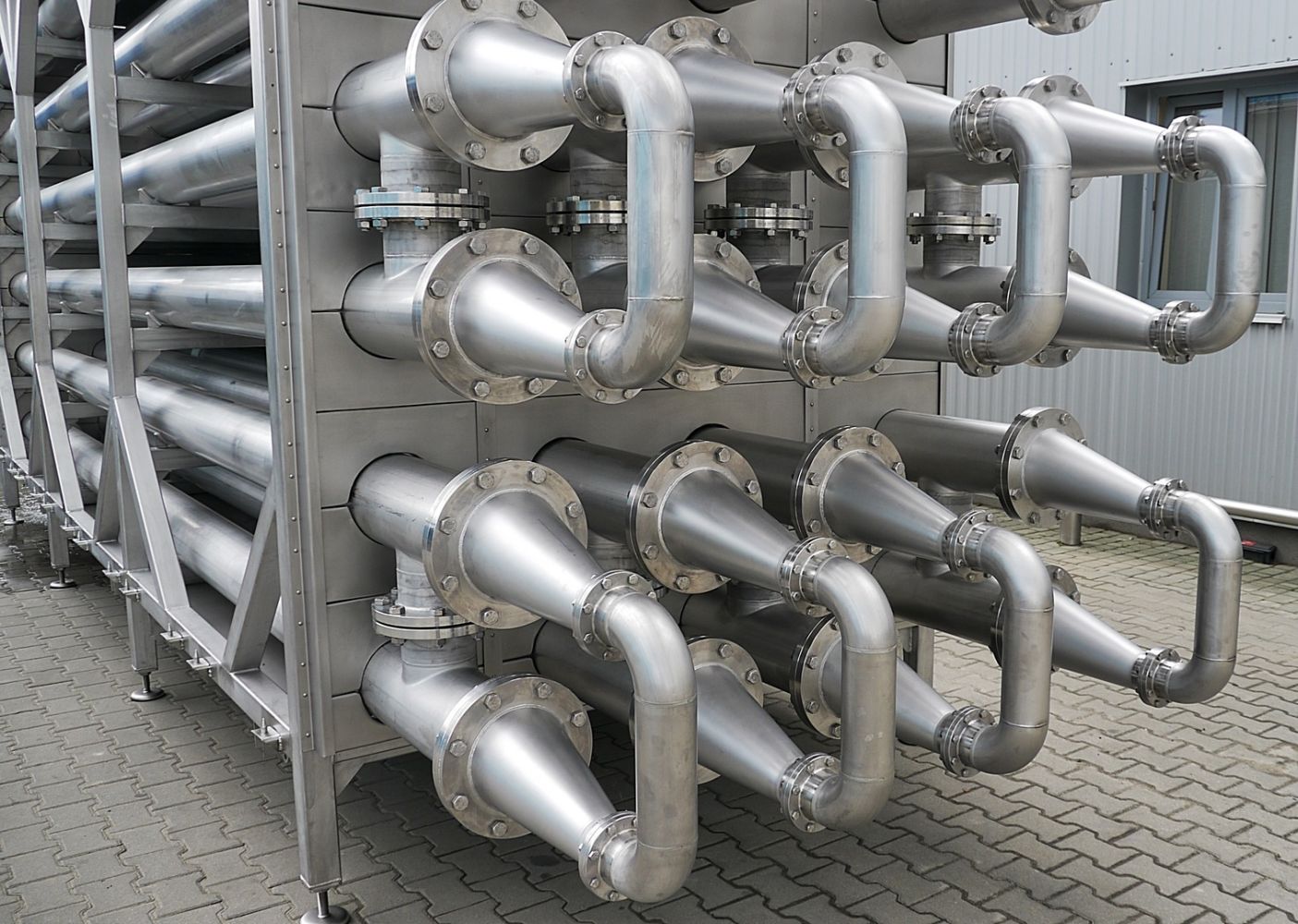

The B&P pipe heat exchanger is a pipe-in-pipe system. The operating medium – hot water – is prepared in a hot water pre-heater by the means of steam. A circulating pump is used to pump it into the external pipe of the exchanger. The product flows in the opposite direction through the internal pipe of the heat exchanger module and is heated up to the set temperature by hot water. Once the water has dissipated its heat, it flows back to the circulating pump to be reheated.
The new generation of IPS 10000 i-SiK presses enables efficient extraction of juice from various (...)
B&P mills are used in the food industry for processing fruits and vegetables.

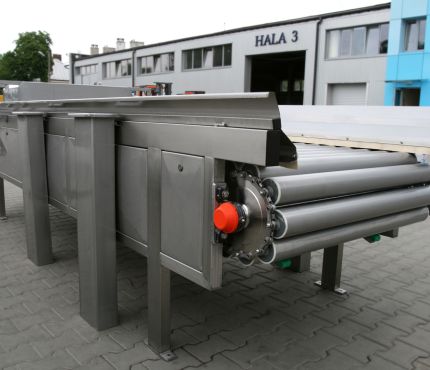

Used in food industry drive roller tables manufactured by B&P Engineering are a great solution (...)

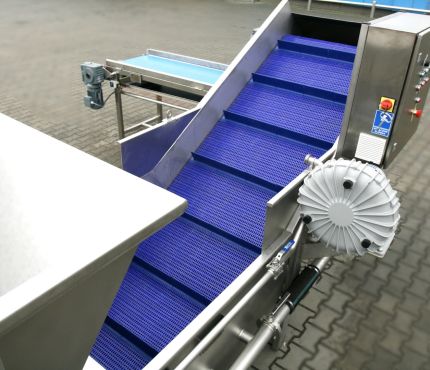

Manufactured by B&P Engineering from certified materials belt feeders are used for transport of apples (...)
