Control system guarantees precise dosing of fining agents.
After dosing, a feeding line is rinsed and fining agent preparation station is automatically switched off. All the data are archived in compliance with the production control requirements, including but not limited to HACCP system.
| Efficiency | Adjusted to the line size |
| Control system | Simatic S-7 |
| Power input | 5 -15 kW |
| Dimensions | Length: 3,540 mm, width: 1,240 mm, height 1,876 mm |
| Steam consumption | max up to 50 kg/h |
| Steam pressure | 1-4 bar |
| Material | stainless steel AISI 304/option 316L |
The B&P fining station has been designed for use with food processing technology. To ensure efficiency, stability and suitable organoleptic properties of their products, manufacturers of concentrates and beverages use finings which must be precisely dosed during the production processes.

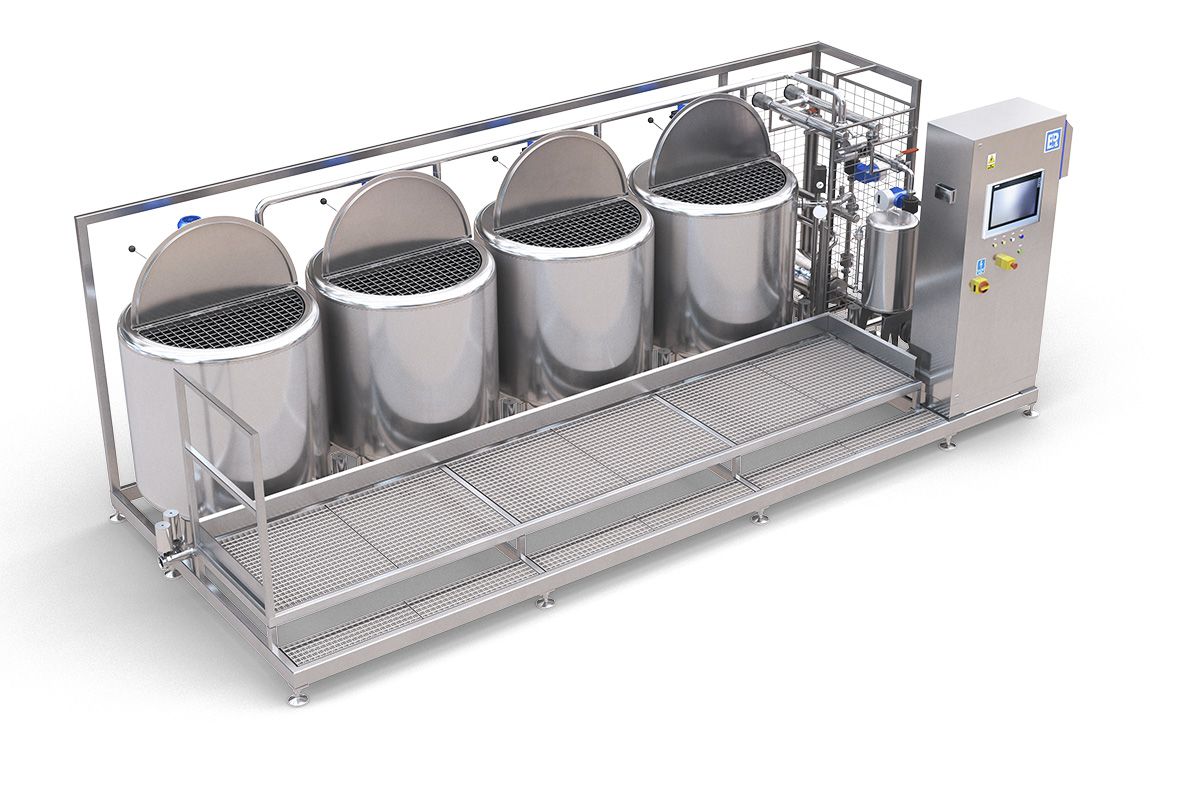

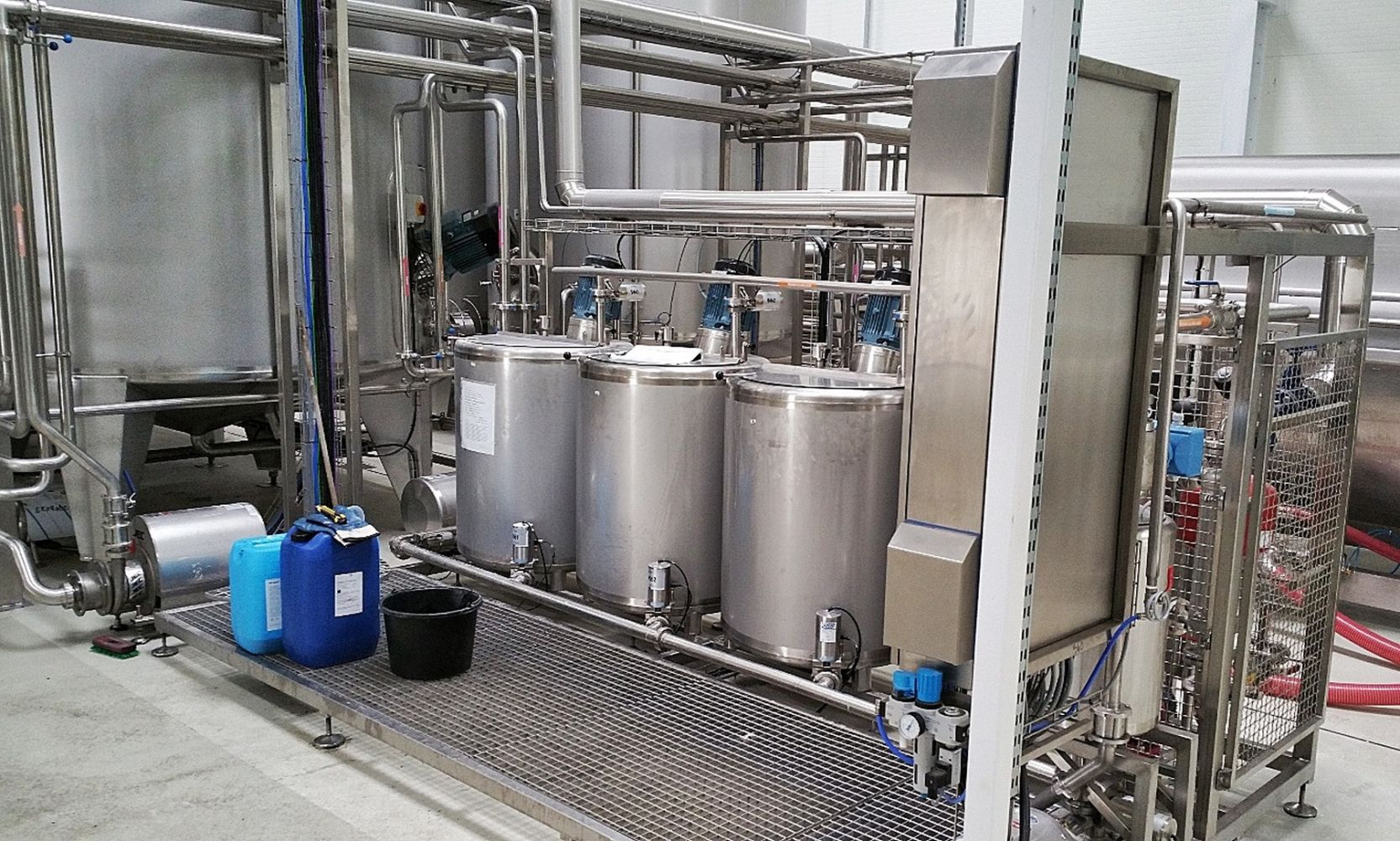

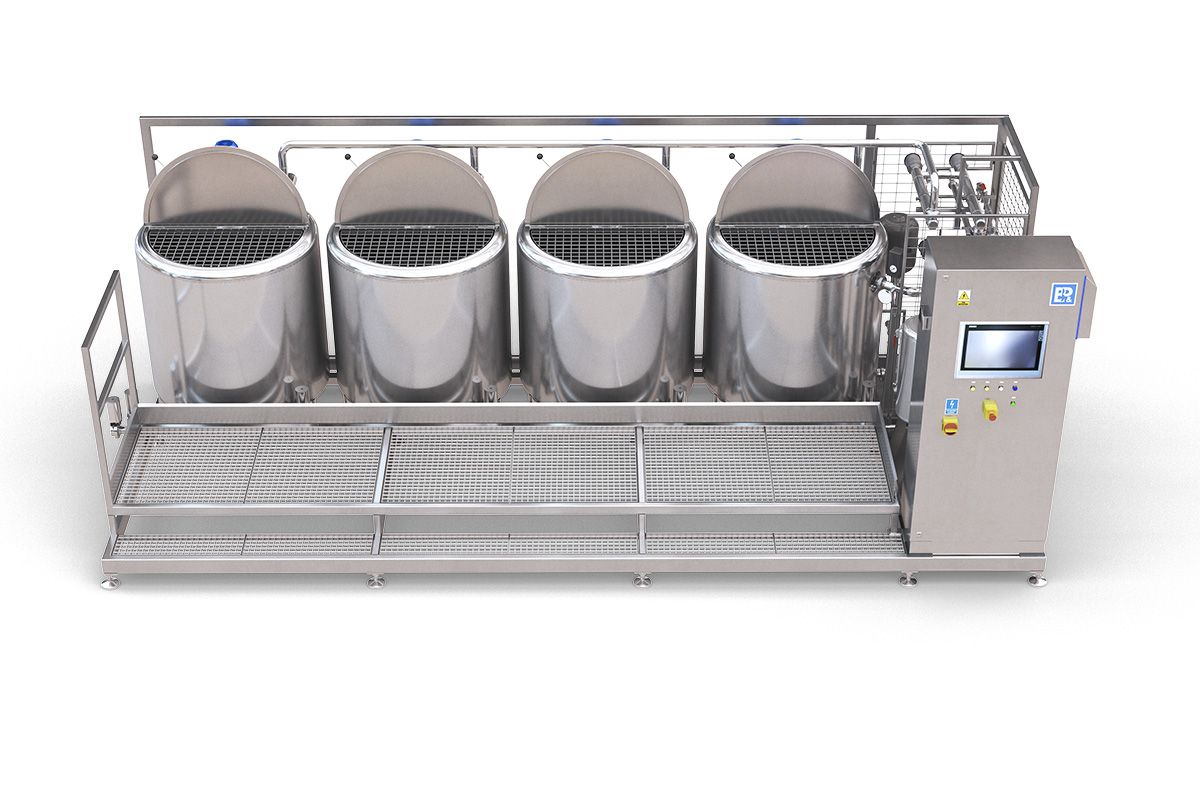

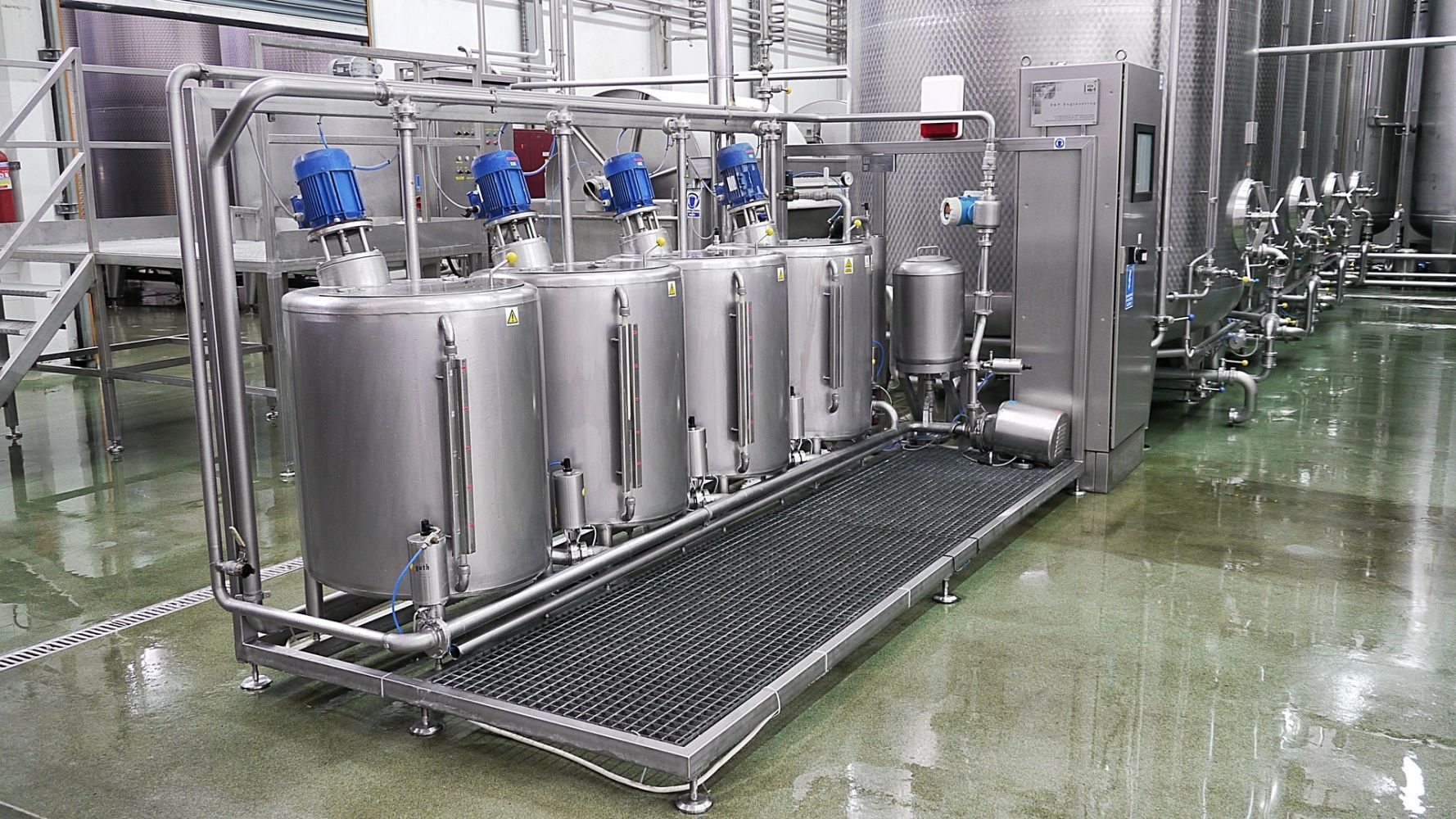

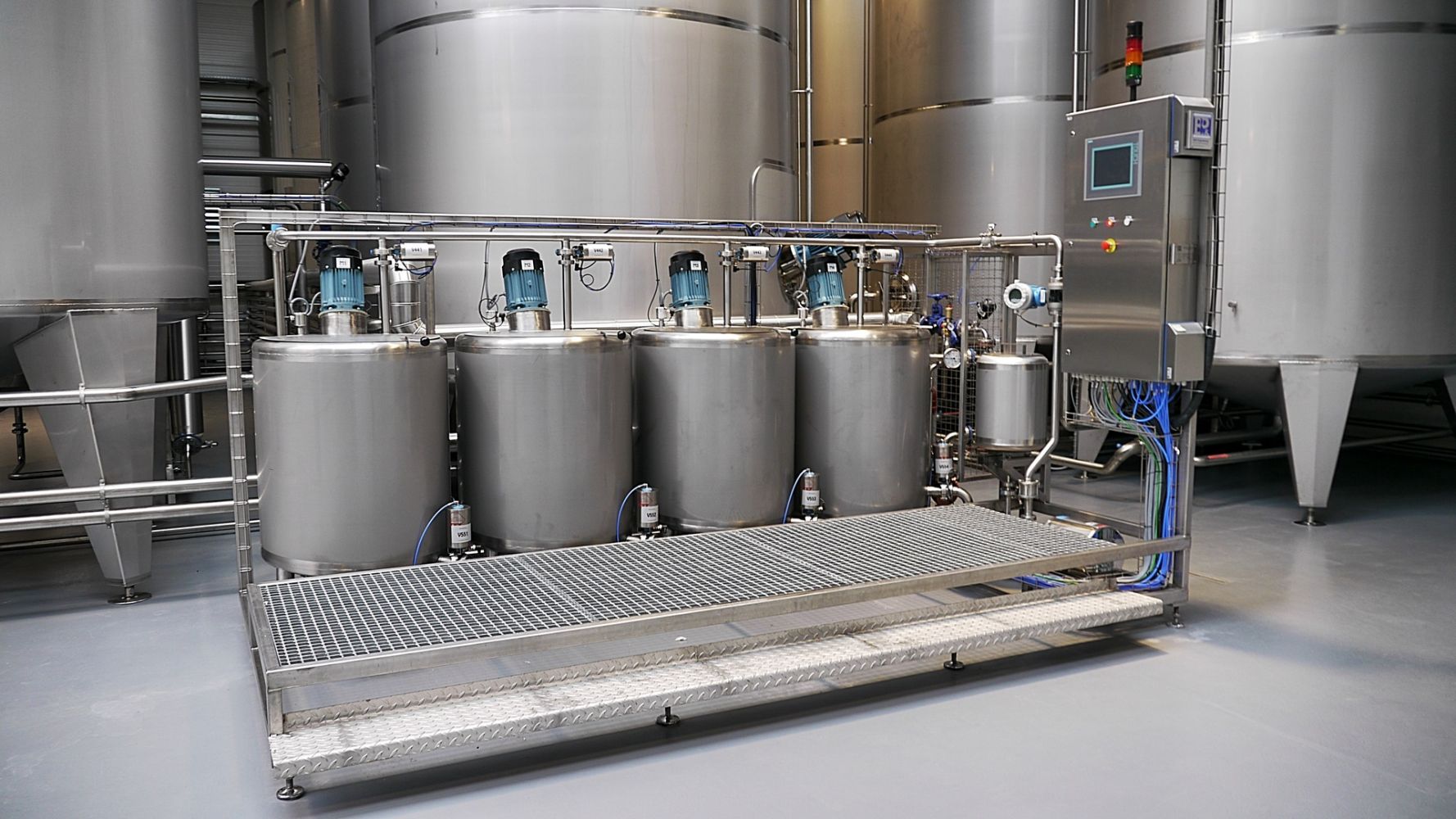

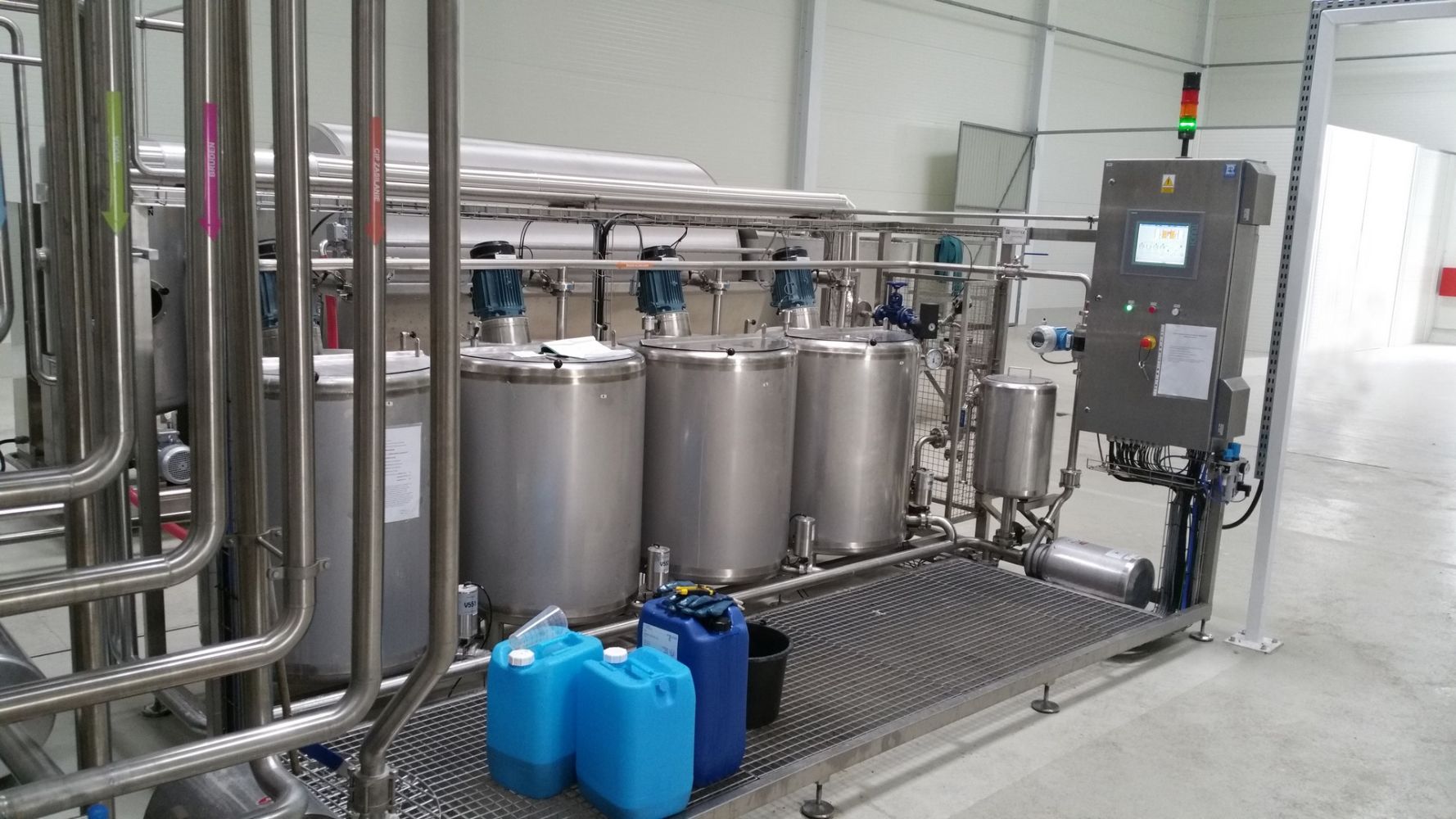

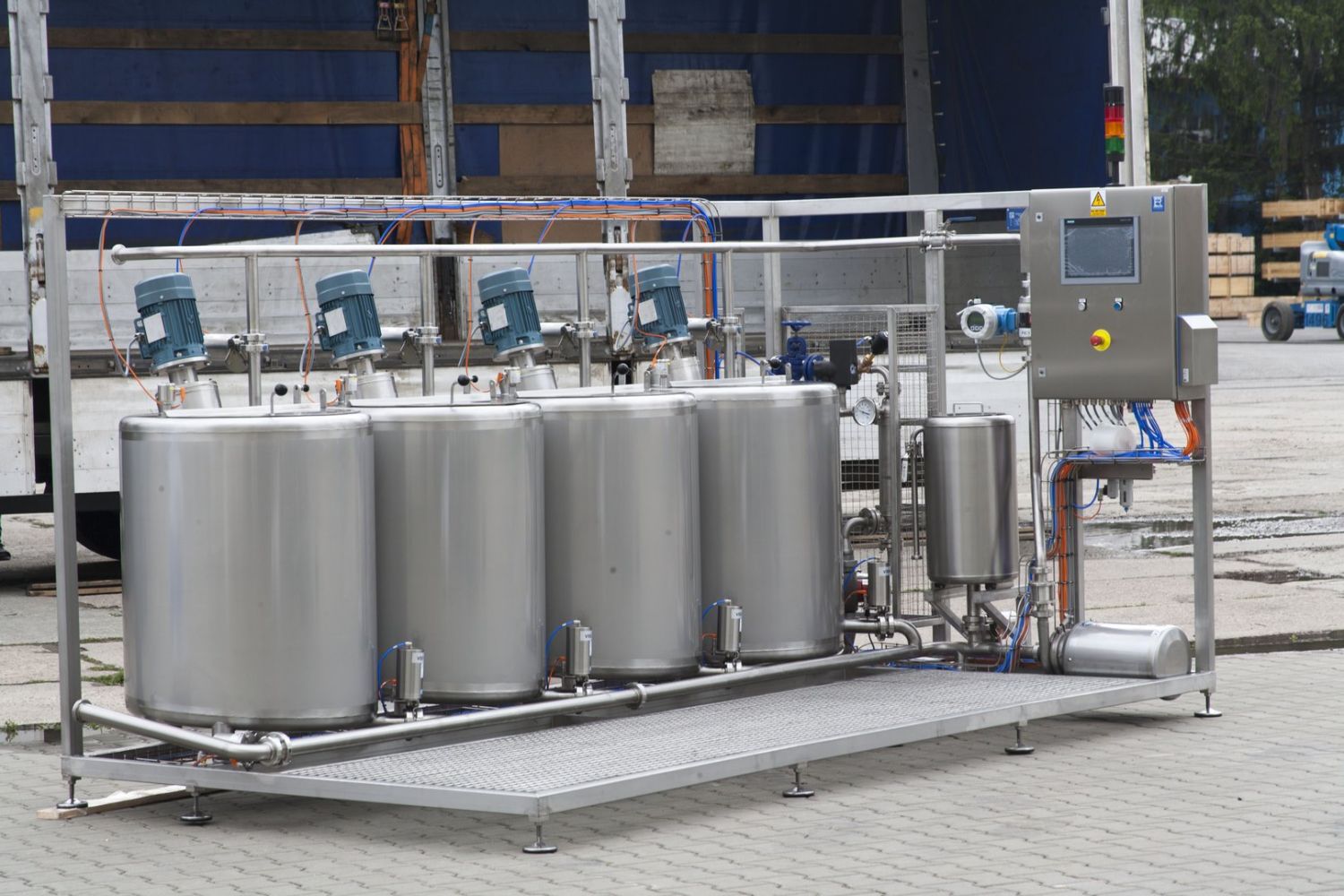

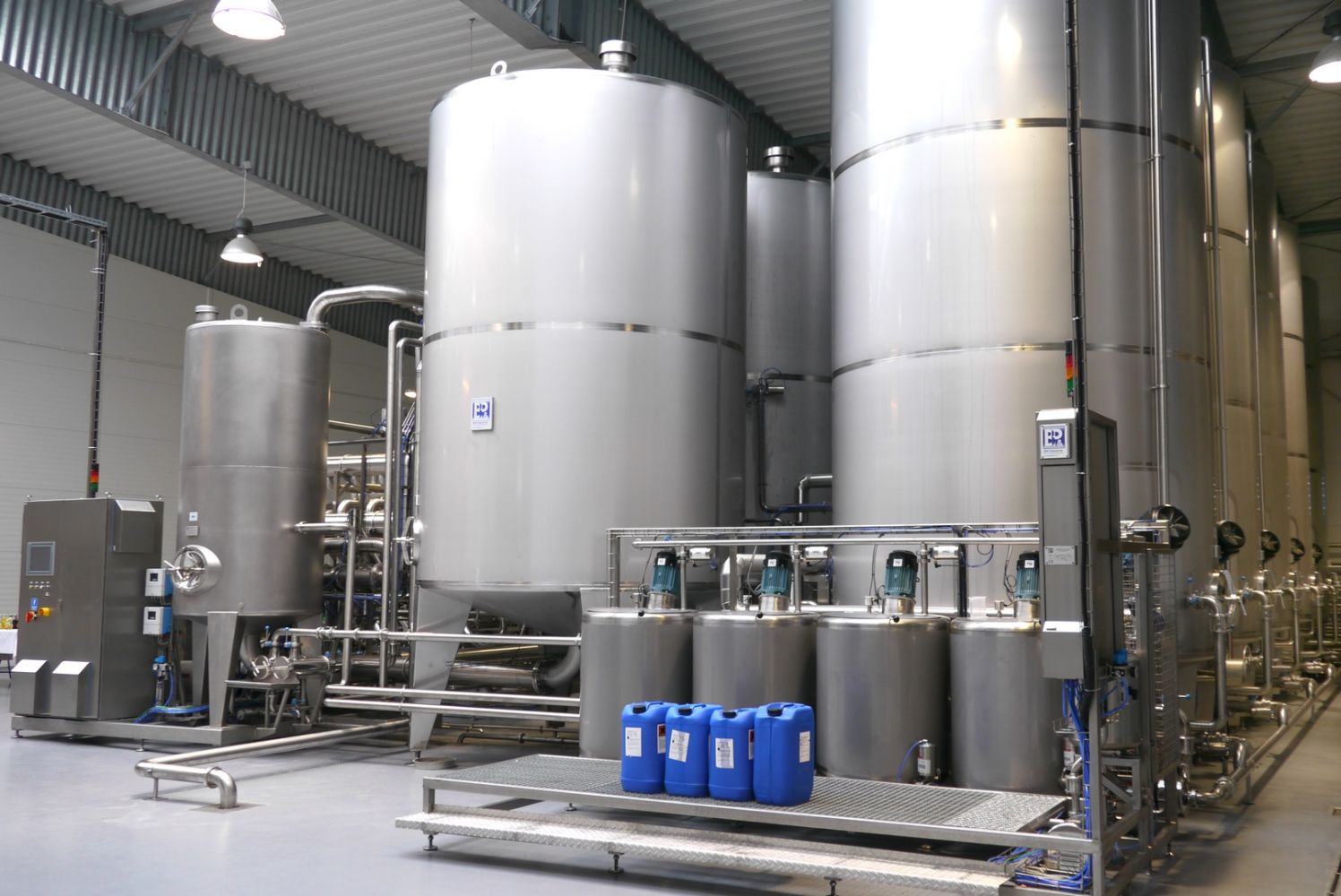

In its standard version, the B&P fining station is fitted with four tanks. Two tanks are used for preparing the bentonite solution while the third tank is used for preparing a colloidal mixture. The fourth tank is reserved for diluting and heating up gelatine solutions, and is fitted with its own circulating pump, a heat exchanger and a water heating jacket. The tank volumes can be matched to individual customer needs.
In its standard version, the B&P fining station is fitted with four tanks.
Two tanks are used for preparing the bentonite solution while the third tank is used for preparing a colloidal mixture. The fourth tank is reserved for diluting and heating up gelatine solutions, and is fitted with its own circulating pump, a heat exchanger and a water heating jacket. The tank volumes can be matched to individual customer needs.
Depectinisation process is carried out in acid-proof tanks equipped with stirrers (mixers).
