XL Ultrafiltration system

_

• Maximum productivity and excellent juice quality
• High reliability and low maintenance due to used intermediate flange connections
• Highly efficient CIP system
• Modular structure, high efficiency in a small space
• Fully automatic control system with WinCC visualization
• Convenient maintenance and low susceptibility to faults
• Turnkey delivery incl. assembly of all process tanks and measurement peripheries

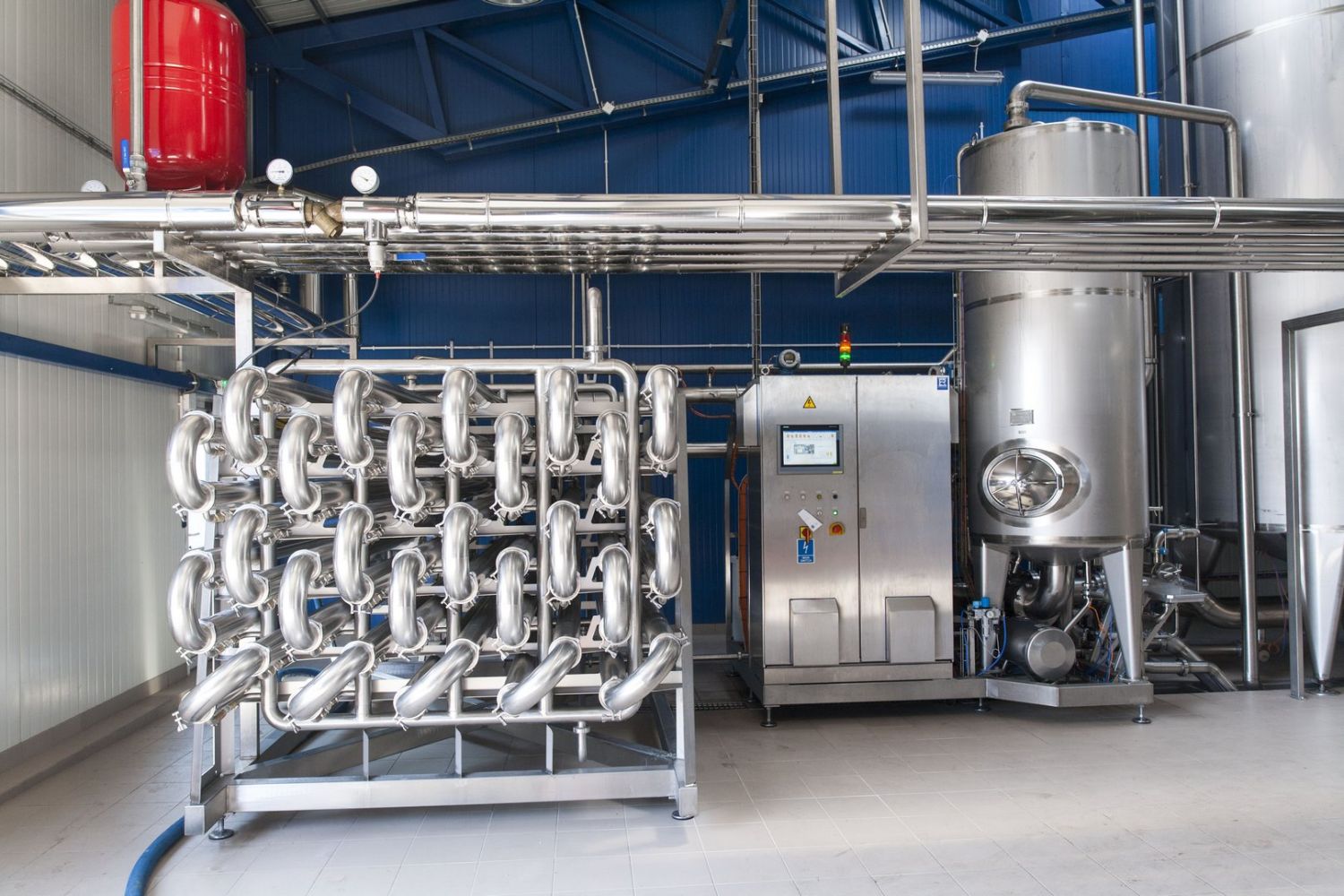

All filtration processes are managed by a PLC based on Siemens Simatic S7-300 and  controlled by a 17” touch  panel with WinCC visualization.

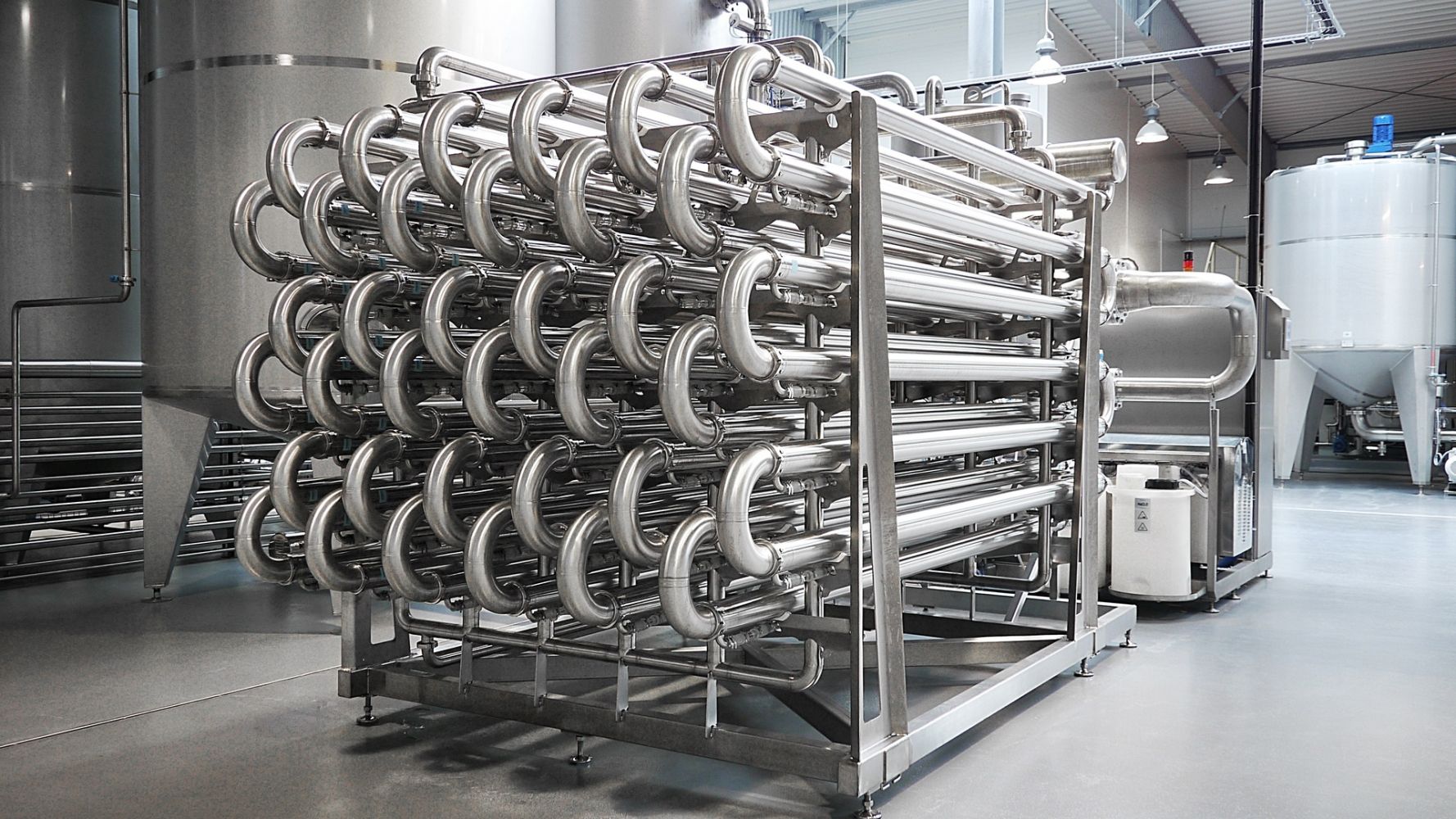

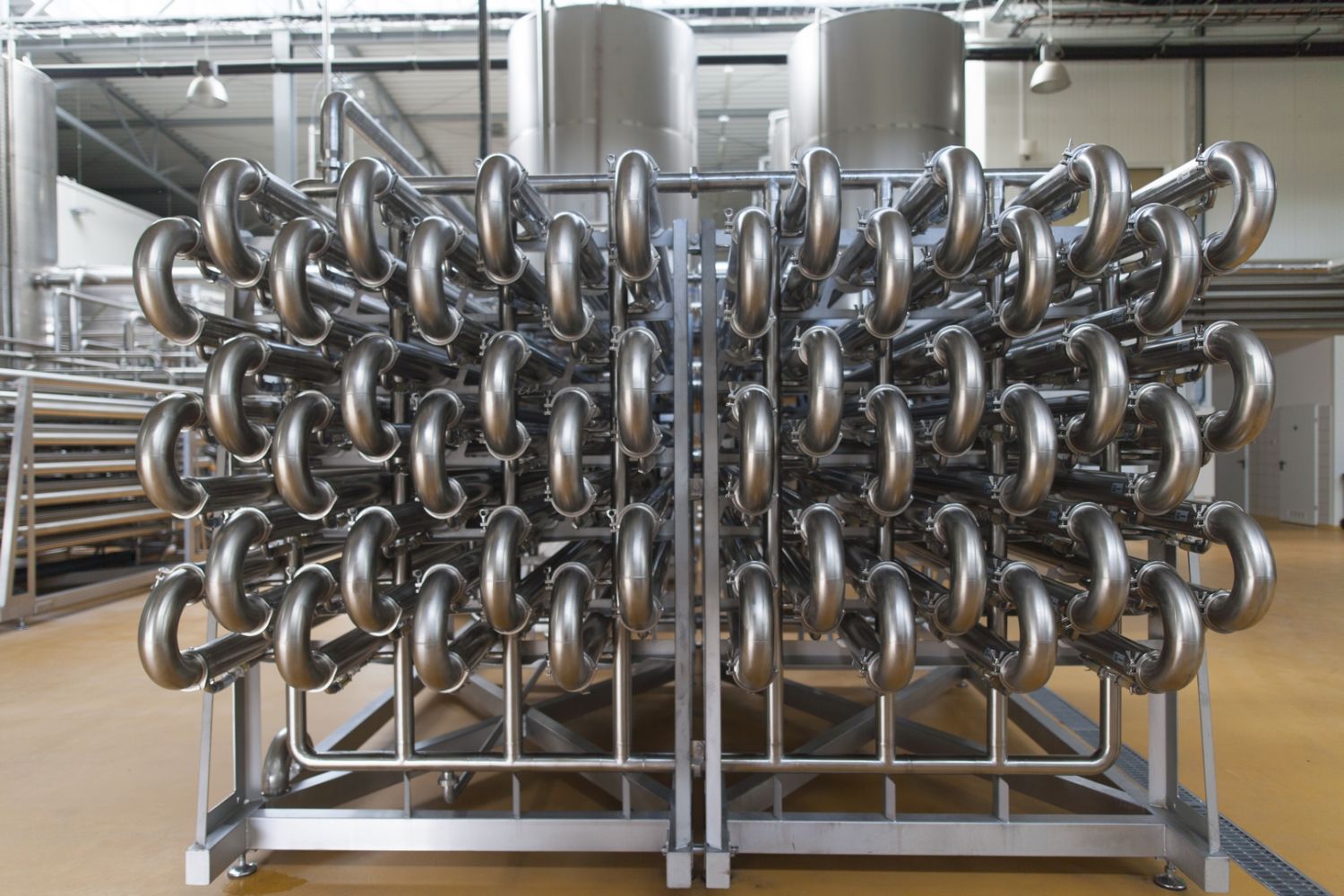

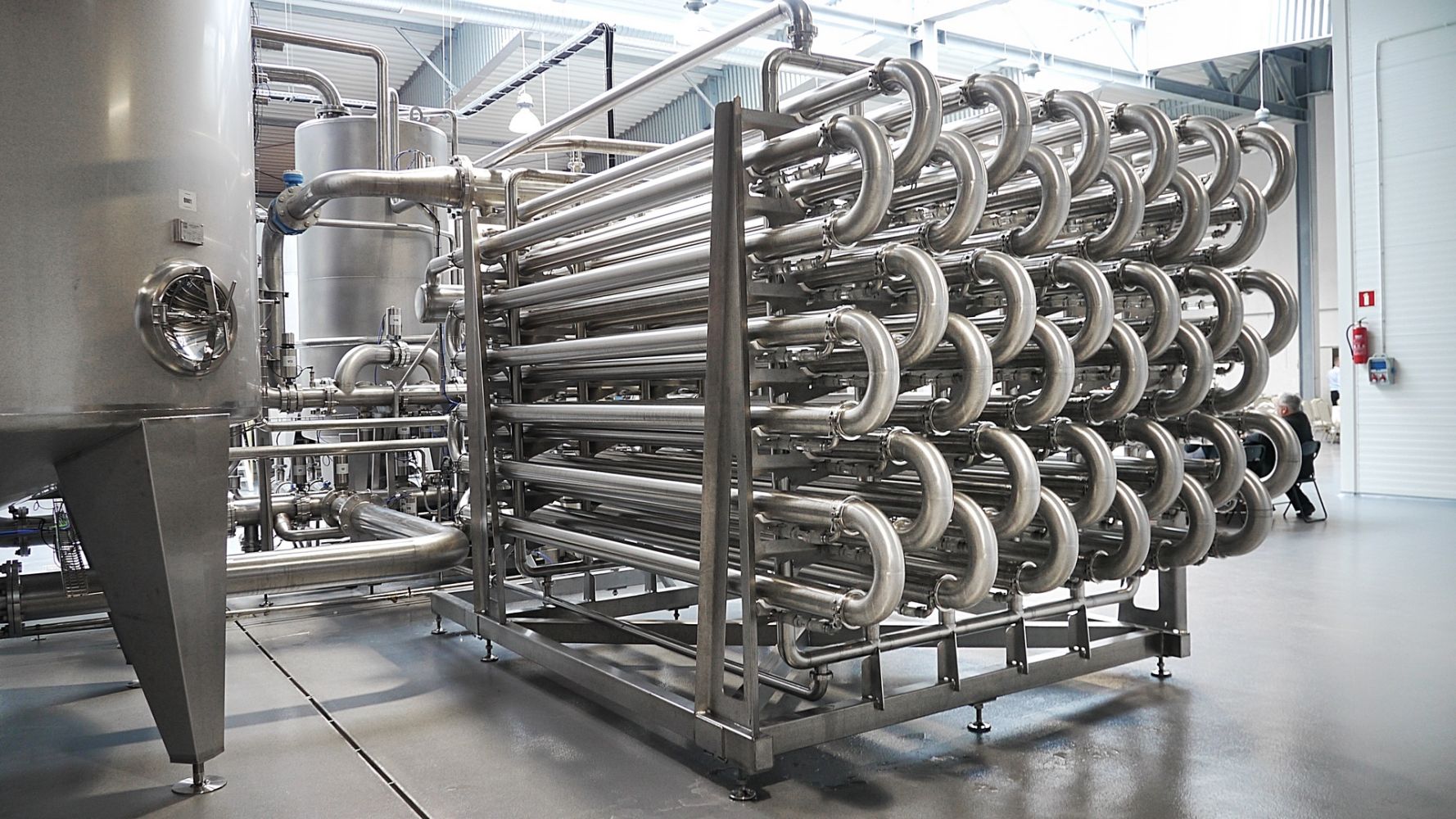

PCI Membranes A19/A37  tubular ultrafiltration membrane systems incorporates a robust, low cost stainless steel module together with a choice of tubular UF and MF membranes. The innovative removable core design (RCM) permits simple, rapid and inexpensive membrane replacement. Modules are offered in two lengths (3,05m & 3,66m) each housing 19 or 37 membranes cast in epoxy resin at each end. The modules are manufactured with materials compliant with FDA,  CFR21  and  EU  regulations.

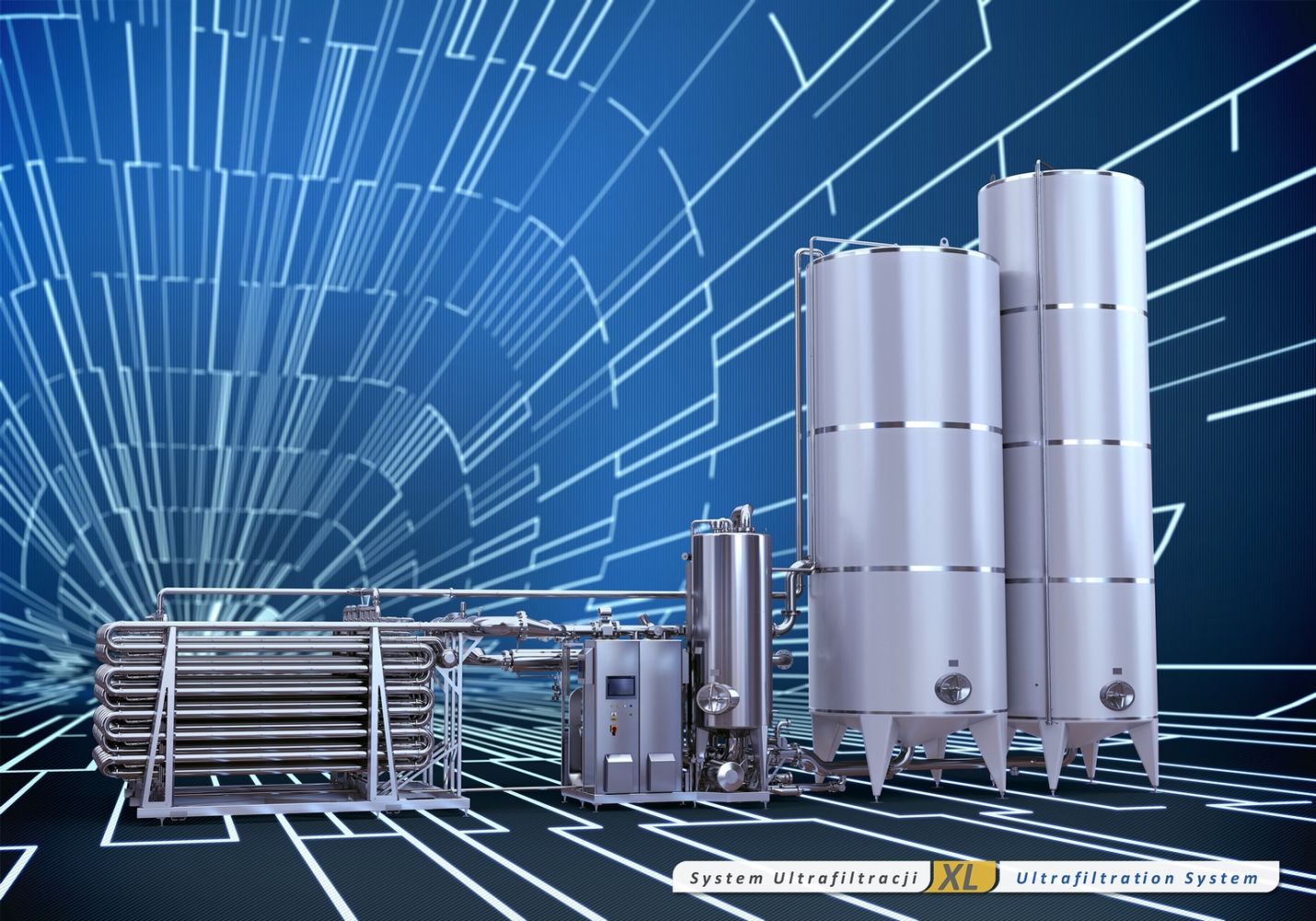

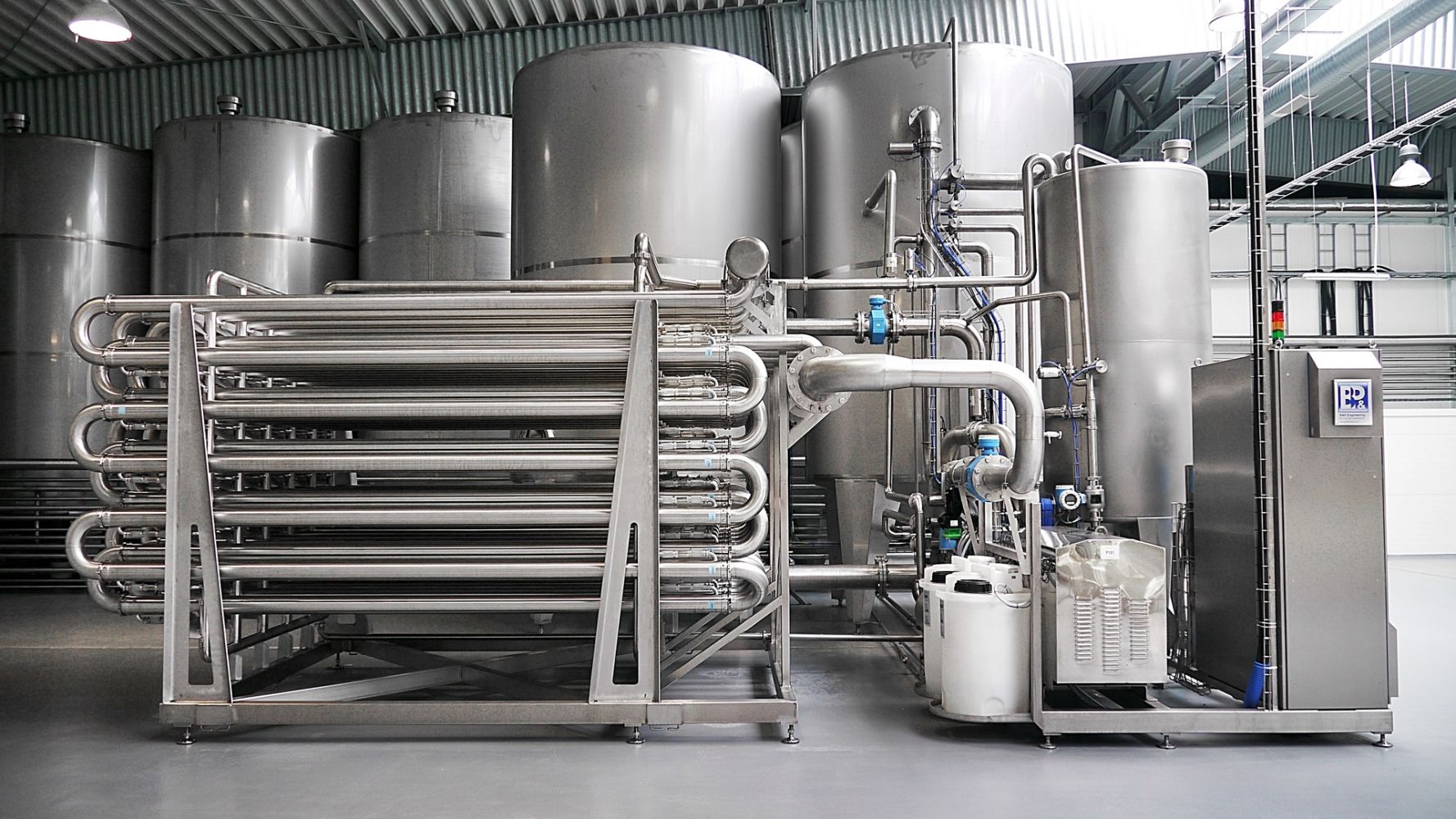

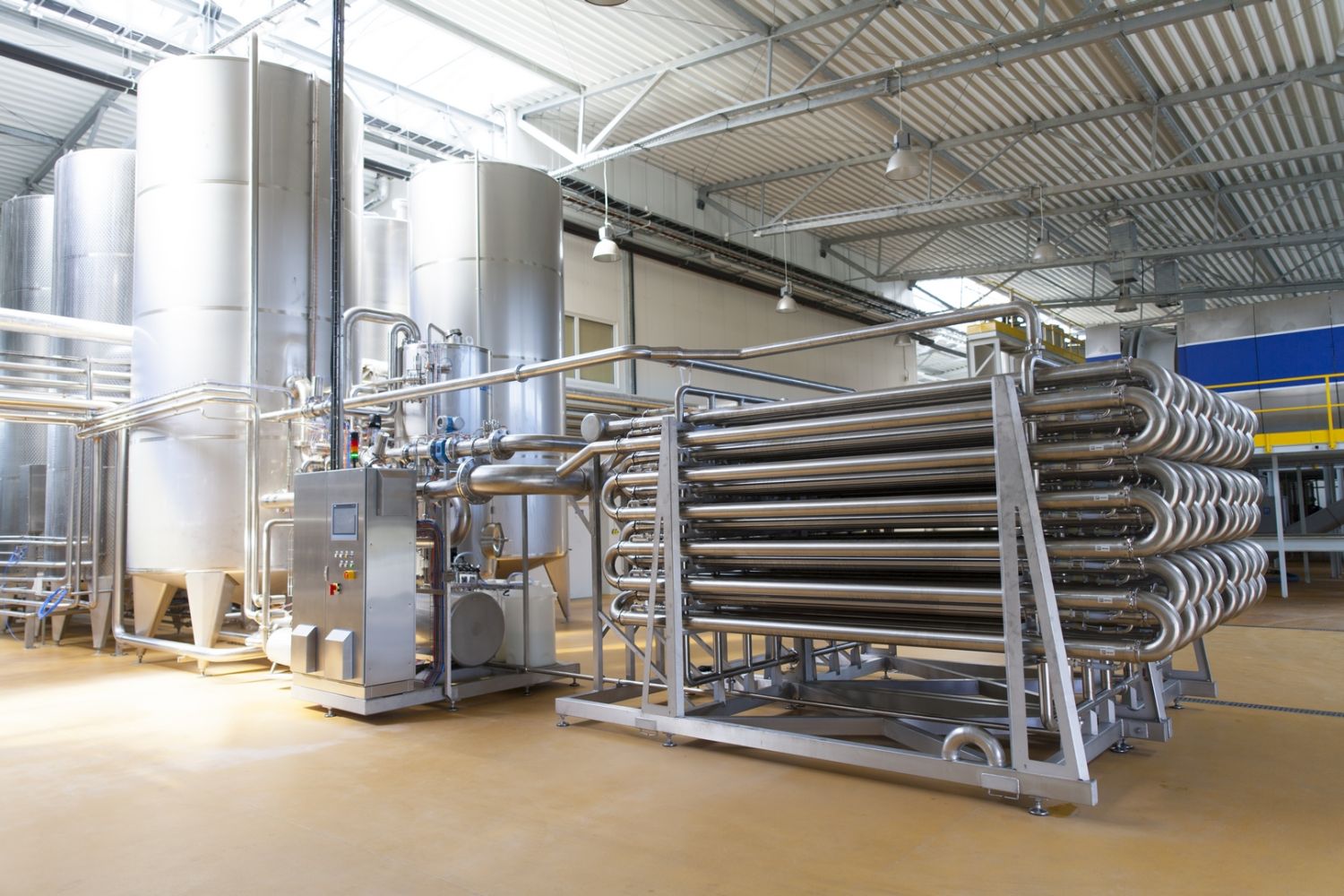

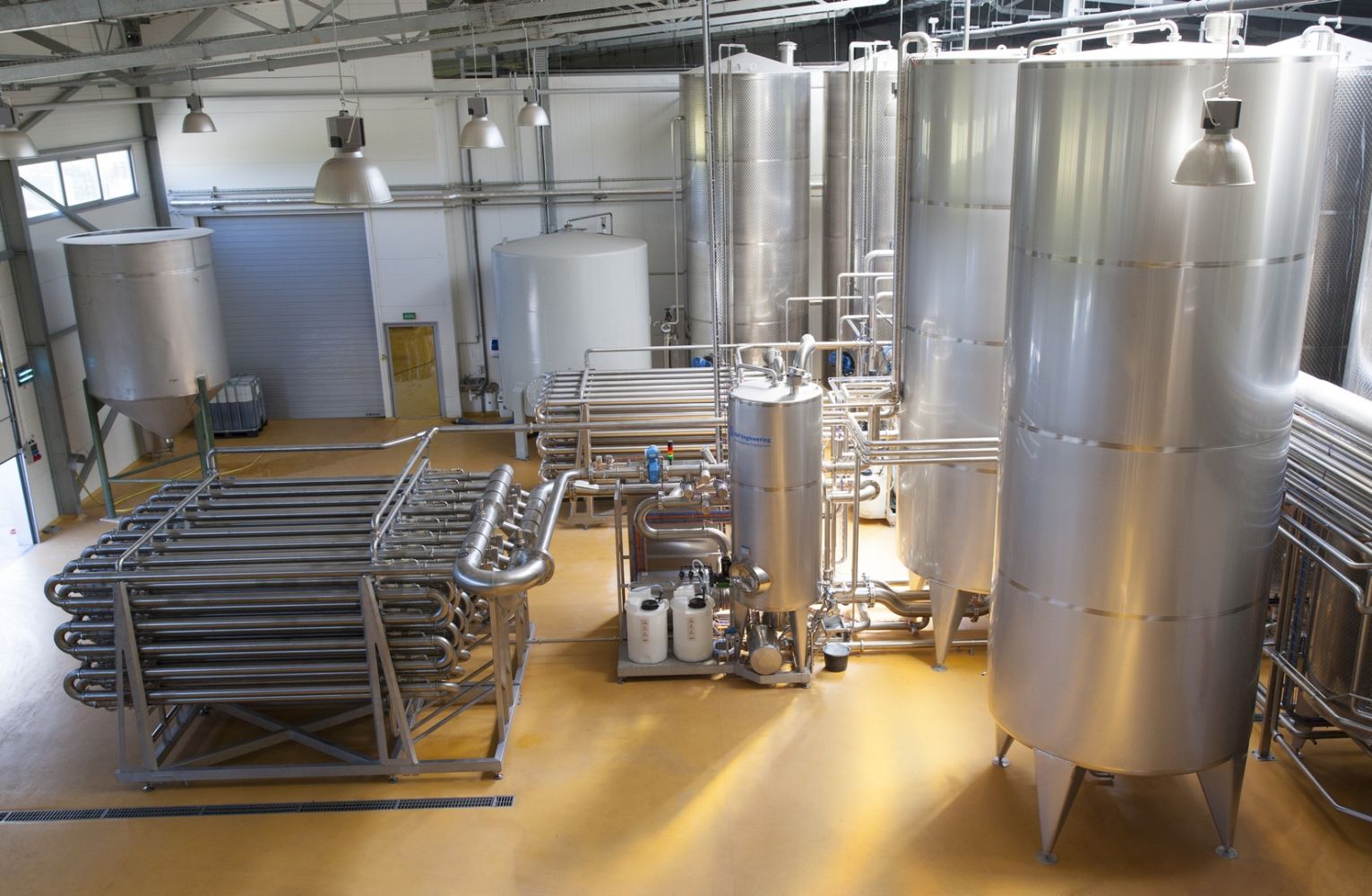

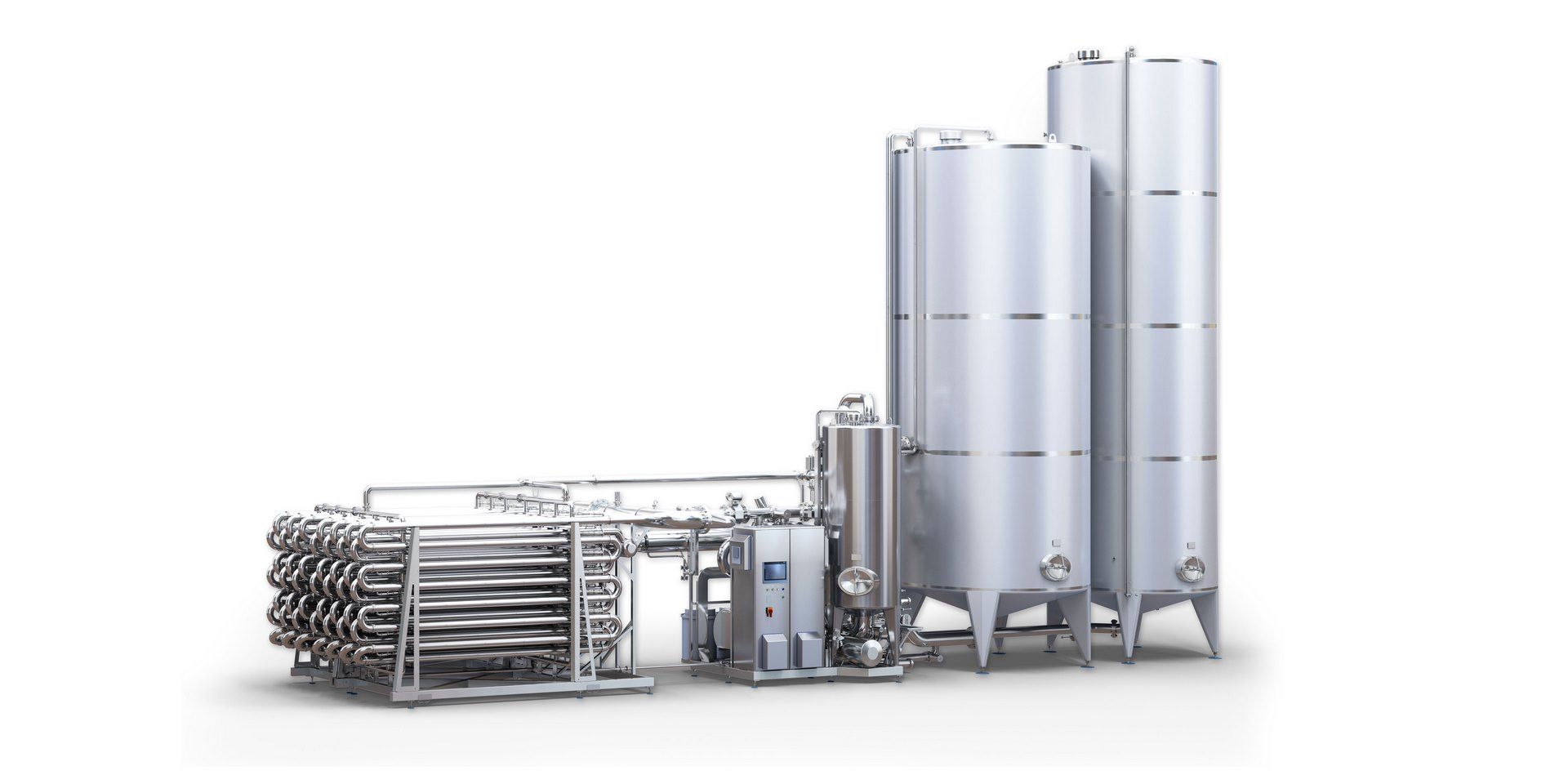

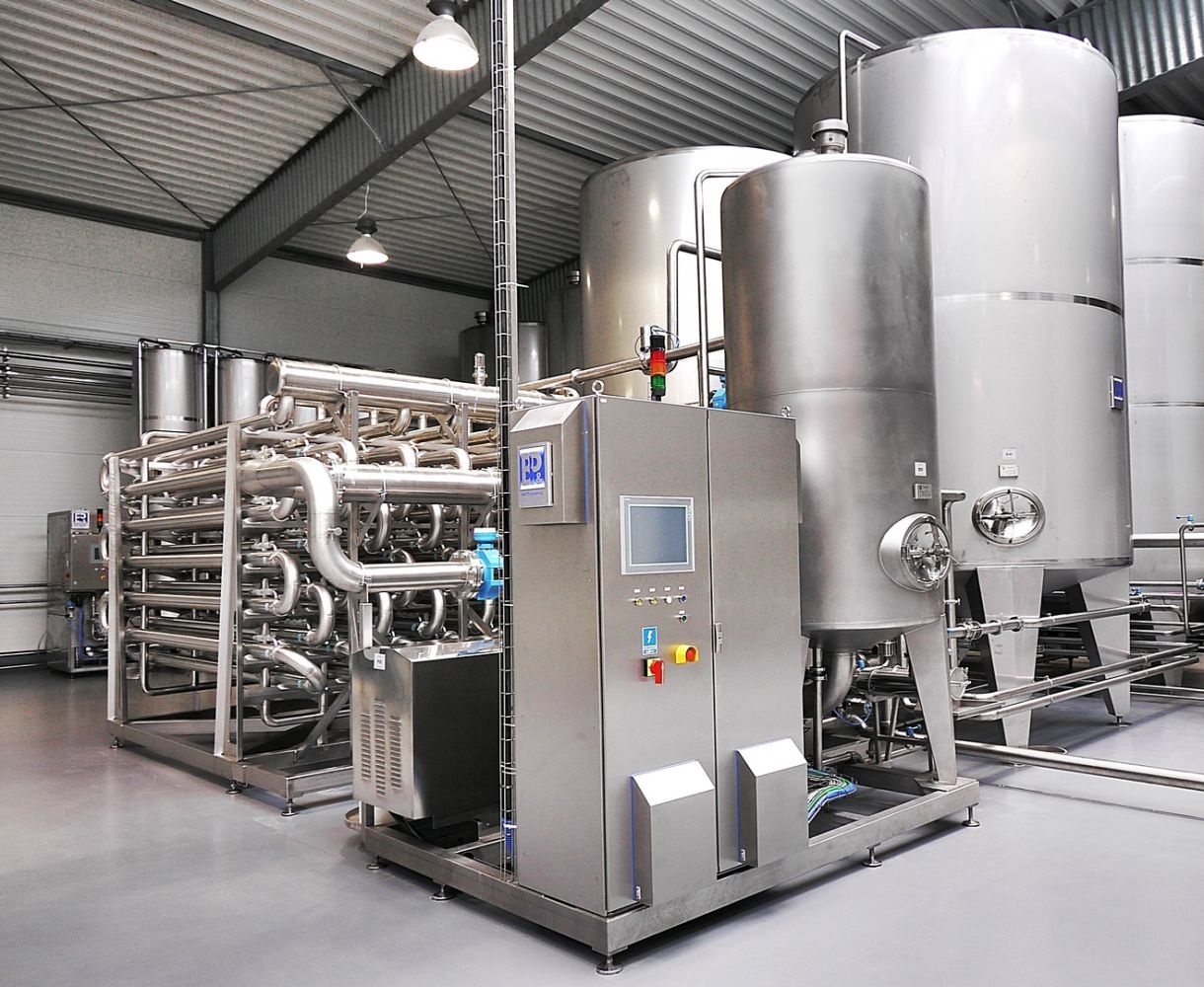

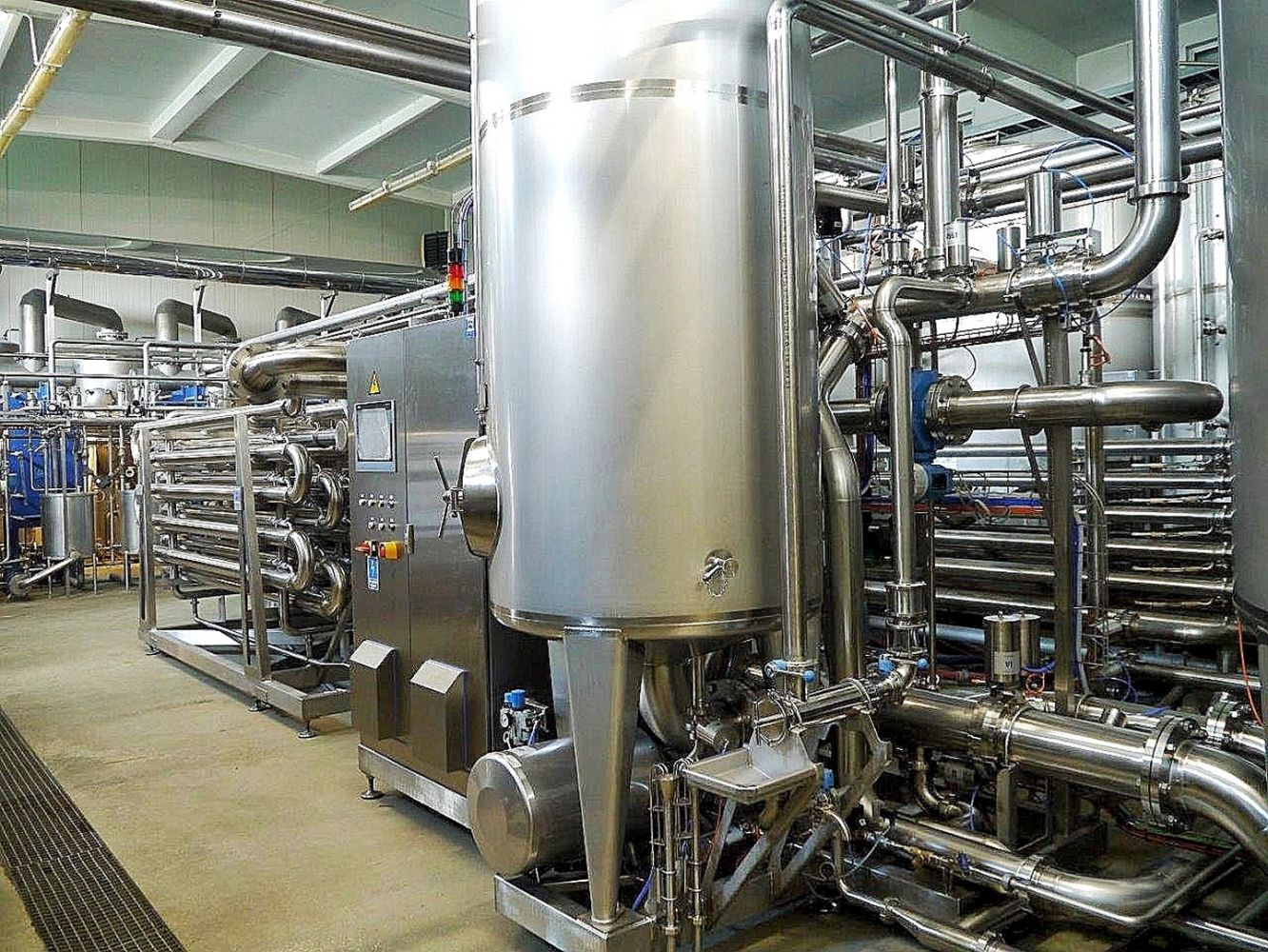

The UF XL is a fully automatic cross-flow juice ultrafiltration system based on batch system. The ultrafiltration membrane system consists of 3 process tanks: batch tank (retentate), clear juice tank (permeate) and process water tank. Cloudy depectinized juice is pumped into the batch tank. A highly efficient centrifugal pump pumps the cloudy  juice at a high rate through the membrane modules. In this process, a thin and homogenous coat is formed on the membrane surface. A portion of the fluid penetrates the membranes and is pumped as the finished product (permeate) into the permeate vessel. The retentate is condensed automatically at cyclic intervals in the batch tank until it reaches a maximum concentration. As soon as the maximum concentration of solids is reached, the retentate can undergo diafiltration to maximize the product yield.
